3D Panels 5/5 mm

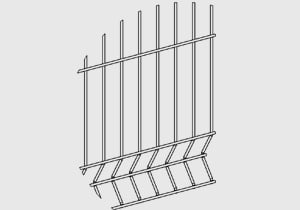

Durable 3D wire mesh fencing panels made of both blank and galvanised wire and coated with a polyester powder coating. These 3D wire mesh panels are an optically attractive and cost-efficient alternative to conventional double rod mesh panels. The special 3D technique ensures the stability of this single wire mesh panel.

Fout standard Ral colors
6005, 6009, 7016 en 9005. Other colours on request.

Click here for the dimensions
ø (mm)Centre (mm)Width (mm)Height (mm)Bending pieces
5-550 x 2002508 / 30088302
5-550 x 2002508 / 300810302
5-550 x 2002508 / 300812302
5-550 x 2002508 / 300814302
5-550 x 2002508 / 300815303
5-550 x 2002508 / 300817303
5-550 x 2002508 / 300819303
5-550 x 2002508 / 300820304
5-550 x 2002508 / 300823303
5-550 x 2002508 / 300824304
Specifications of wire mesh panels made of galvanised wire

The panels have been galvanised according to EN 10244-2, Class D, with a minimum zinc layer of 40 g/m². The polyester powder coating has an average thickness of 100 µm.

Specifications of wire mesh panels made of blank wire

The panels have been galvanised according to EN 1461. The polyester powder coating has an average thickness of 100 µm.
